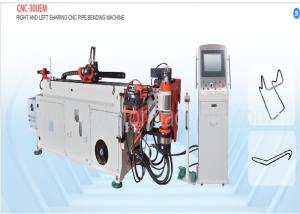

Symmetrical Workpiece CNC Pipe Bending Machine With Left And Right Co Rotation

Name: Symmetrical Workpiece CNC Pipe Bending Machine With Left And Right Co Rotation
Brand: WONDERY
Price: 1 USD

Wholesale Symmetrical Workpiece CNC Pipe Bending Machine With Left And Right Co Rotation from china suppliers

Brand Name : WONDERY

Model Number : CNC-30UEM

Certification : CE

Place of Origin : Jiangsu,China(Mainland)

MOQ : 1 Set/Sets

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Sets per Year

Delivery Time : 45 working days

Packaging Details : wooden case suitable for sea transportataion

Name : Right And Left Sharing CNC Pipe Bending Machine

Model : CNC-30UEM

Max bending capacity : 28x1.5 mm

Bending radius range : 10-85 mm

Max pipe diameter for reciprocating feeding : 25.4 mm

Bending angle range : 190°

Contact Now

Symmetrical Workpiece Bending With Left And Right Co-Rotation CNC Pipe Bending Machine

1.Equipment Features

The CNC pipe bending machine is driven by Y(feeding),B(rotating pipe),C (bending pipe),

X(left and right displacement of automatic mould changing),Z(up and down changing

mould position in seconds),G (rotating mould axis)six-axis electrical servo.The above

six axis electrical servo drive,with precision trolley servo angle,bending precision of

0.05°,feeding accuracy of 0.05mm.The electric servo drive avoids the defect that the

accuracy of common pipe bending machine is affected by oil temperature, suitable for

high-load,mass production.Automatic mould changing adopts the principle of the head's

top, bottom,left and right displacement to avoid the pipe fitting shaking caused by the

displacement of the feeding seat.The machine head has the function of co-rotation

of left and right sides,which can bend the symmetrical workpiece and some parts with

complicated shape,avoiding the defect of replacing the machine to make up the bending

of the complicated workpiece of the single-rotation pipe bending machine,greatly improving

the precision of the bending workpiece,saving time,manpower and space.

2.Main Technical Parameters

Model	CNC-30UEM
Max.bending capacity (carbon steel)	28x1.5 mm
Bending radius range (round pipe)	10-85mm
Max.pipe diameter for reciprocating feeding	25.4mm
Bending angle range	190°

Product Tags:

Symmetrical Workpiece Pipe Bending Machine

CNC Pipe Bending Machine

Rotation CNC Pipe Bending Machine

Symmetrical Workpiece CNC Pipe Bending Machine With Left And Right Co Rotation Images
